5 hp Yamaha 4 stroke Manual Start Tiller 20"

$2,155.84 incl GST

Enquire

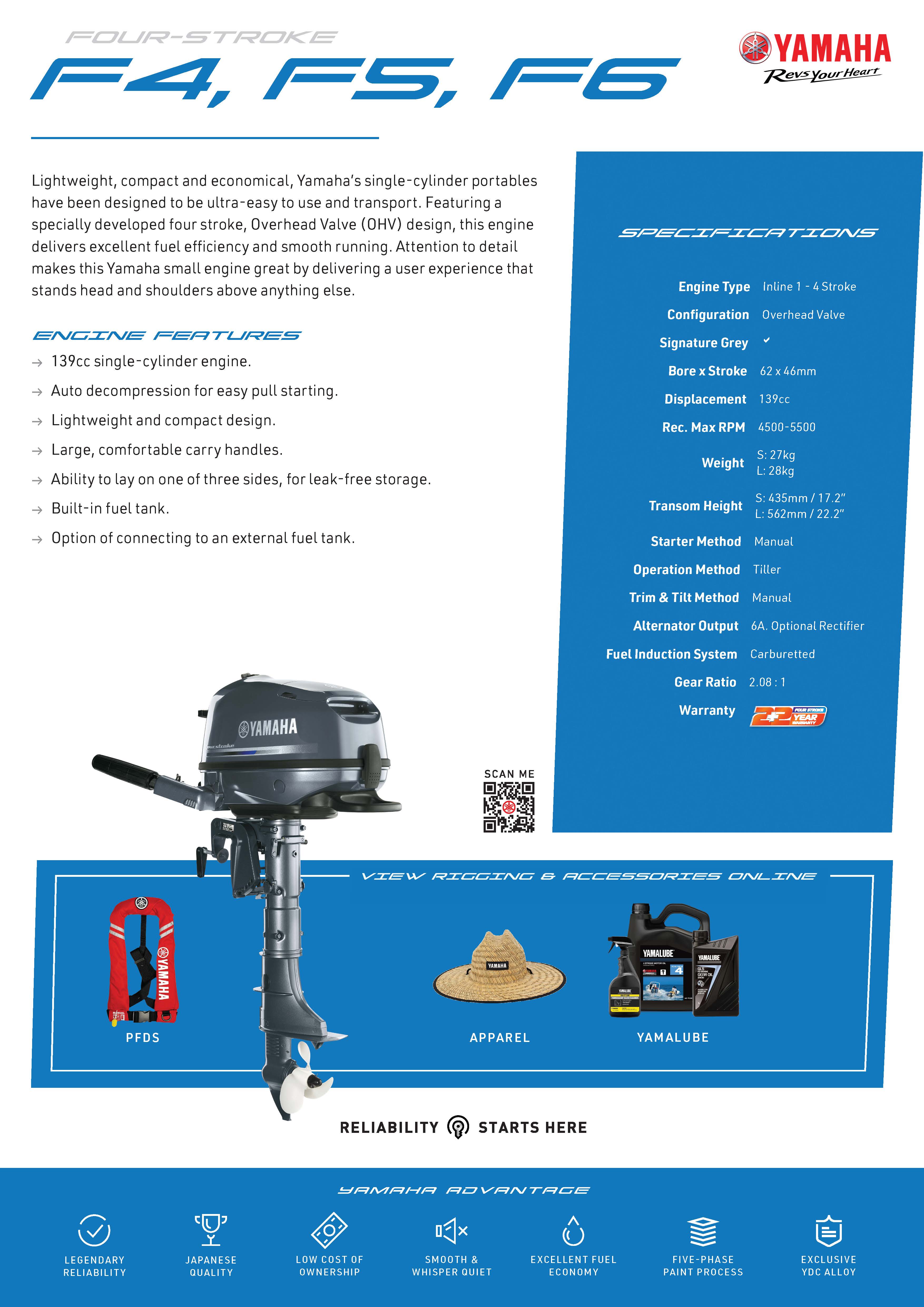

Lightweight, compact and economical, Yamaha’s single-cylinder F5 portable has been designed to be ultra-easy to use and transport.
Featuring a specially developed four- stroke, Overhead Valve (OHV) design, this engine delivers excellent fuel efficiency and smooth running.
Attention to detail is what makes Yamaha small engines great - delivering a user experience that stands head and shoulders above anything else.

  • Engine Type4-Stroke, OHV, 1-cylinder
  • Bore x Stroke (mm)62 x 46
  • Fuel Tank Capacity (l)1.1
  • Displacement (cc)139.0
  • Recommended Maximum RPM4500-5500
  • Fuel ManagementCarb
  • IgnitionCDI
  • Lubrication SystemWet sump
  • Alternator Output12V-6Amp with Rectifier Regulator (optional)
  • Gear Ratio2.08:1
  • Starter SystemManual Choke
  • Operation MethodTiller Handle
  • Trim and Tilt MethodManual Tilt
  • Digital GaugesN/A
  • Command Link Gauges

    N/A


    S: 435 [17.1] | L: 562 [22.1]

  • Transom Height (mm [inch])
  • Dry Weight (kg)S: 27 | L: 28
SKU:.NF5LMHA
